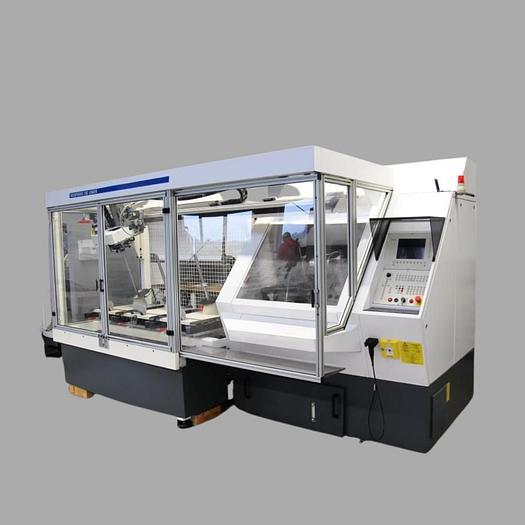

2004 WALTER WOODTRONIC CNC 5 RAPIDE
Inquiries by e-mail- DESCRIPTION
-
Suitable for fully automatic grinding of all known tooth geometries (e.g. flat, alternating, trapezoidal tooth) from HM – circular saw blades on the face and back in one clamping. The free programming also allows the Machining of special tooth shapes.
Accesories:
- Pallet loader with 3 stations,
- Coolant system with total enclosure,
- Integrated hollow tooth grinding device,
- Software package W 1 alternate tooth,
- Software package W 2 flat tooth,
- Software package W 3 flat/trapezoidal tooth (with tooth height difference),
- Software package W 4 flat / roof tooth (with tooth height difference),
- Software package W 5 trapezoidal tooth,
- Software package W 6 pointed on one side,
- Software package W 7 tooth face processing,,
- Software package W 8 free programming of special tooth forms,
- automatic tool positioning axis,
- auto. fire extinguishing equipment,
- Electrostatic mist extractor,
- Automatic operator door,
- Automatic central lubrication,
- Probe,
- 2 oil collecting pans,
- 3 loader pallets incl. 30 mm loading mandrels,
- approx. 50 intermediate layers,
- approx. 30 magnetic adapters of various diameters,
- 1 loading wagon.
- SPECIFICATIONS
-
Manufacturer Walter Model Woodtronic CNC 5 Rapide Year 2004 Condition Used Stock Number M01781 Circular saw blade diameter 80 - 1000mm Circular saw blade diameter when using the resharpener 150 - 600 mm Circular Saw Bore Diameter from 10 mm blade thickness max. 8 mm Tooth pitch 4- 125mm breast angle (rake angle) -40° to +45° back relief angle 1° to 25° shear angle -20° to +20° max. grinding wheel diameter 160 mm Grinding wheel bore diameter 32 mm Drive power grinding spindle 1.1 kW (3500 rpm) coolant pump performance 50L/min. at 3 bar settling tank (coolant tank) about 70 l Sound pressure level according to DIN 45635 5dB(A) Connected load approx. 12kW (400V / 50Hz), mass about 2200 kg Dimensions W x D x H approx. 3530 x 1860 x 2275 mm colour gray RAL 7035 / RAL 7043. - DOCUMENTS
