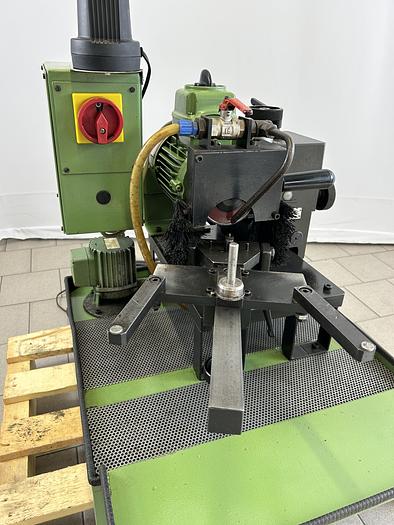

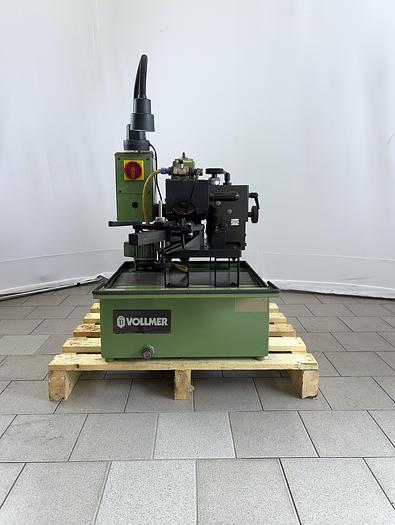

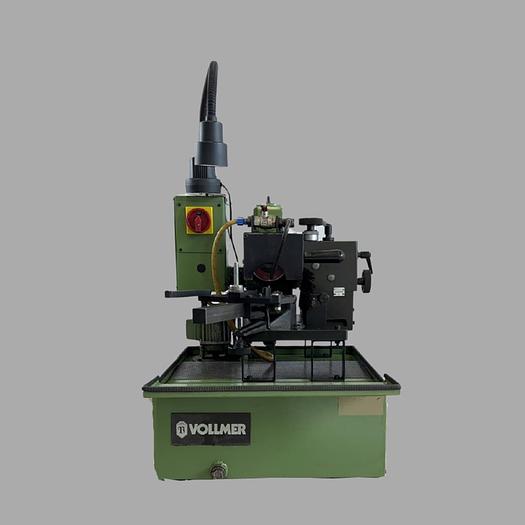

1997 Vollmer CHHF 21 H
Inquiries by e-mail- DESCRIPTION
-
Suitable for manual grinding of tooth flanks on carbide-tipped circular saw blades.
Accessories:
- Coolant system,
- 1 locating bolt,
- 1 centering ring,
- 1 stop finger,
- Mschine lamp.
- SPECIFICATIONS
-
Manufacturer Vollmer Model CHHF 21 H Year 1997 Condition Used Stock Number M01834 Circular saw blade diameter 80 - 700mm Circular Saw Bore Diameter 10-105mm Tooth pitch from 8 mm rake angle 0° to 30° tangential relief angle 0 - 5° radial relief angle 0 -3° grinding path up to 15 mm Grinding wheel diameter 100 mm Grinding wheel bore diameter 32 mm Connected load approx. 0.49kW (400V/50Hz) Weight approx. 82 kg Dimensions W x D x H 500 x 700 x 650 mm colour green - DOCUMENTS
