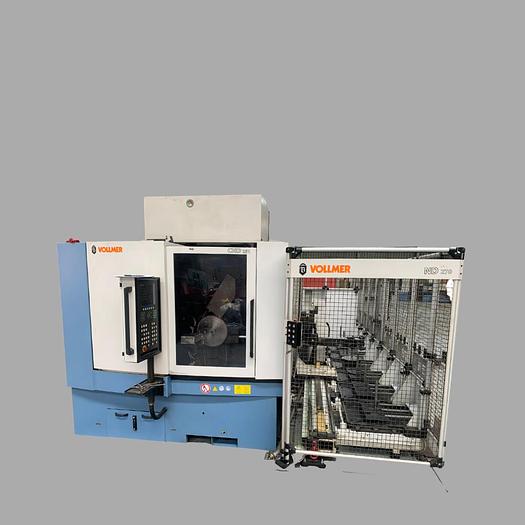

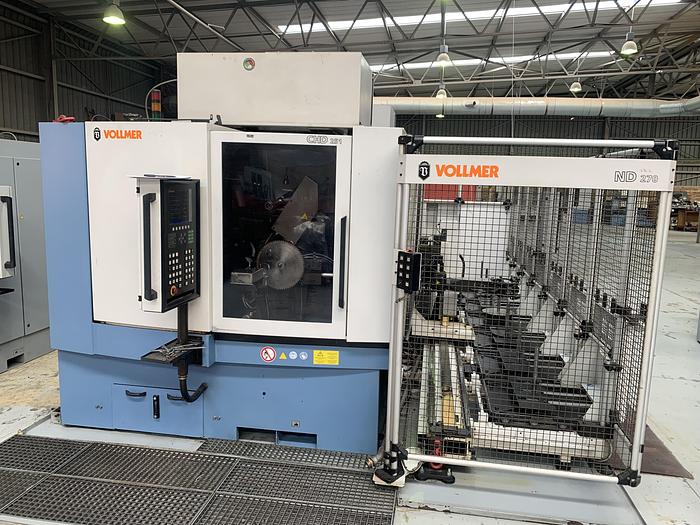

2006 Vollmer CHD 251/ND270
Inquiries by e-mail- DESCRIPTION
-
Suitable for automatic grinding of HM circular saw blades on the chest and back in one setting. All known Tooth geometries (flat, alternate, trapezoidal, etc.) can be machined automatically and in one run.
Accesories:
- Handling system for saw blades ND 270 incl. data input station and 7 loading carriages
- full fairing,
- wet grinding device,
- alphanumeric slide-in keyboard for data management,
- automatic central lubrication,
- infinitely variable grinding spindle drive
- automatic fire extinguishing system
- automatic grinding wheel measuring and compensation device.
- suction N182,
- oil pans
- machine lamp
- 1 saw blade holder
- 1 grinding wheel holder
- SPECIFICATIONS
-
Manufacturer Vollmer Model CHD 251/ND270 Year 2006 Condition Used Stock Number M01779 Circular saw blade diameter without robot 80-840mm Circular saw blade diameter with robot 100 - 630mm Circular Saw Bore Diameter with robot from 10 -180 mm Sheet thickness without robots up to 14 mm Sheet thickness with robot up to 5 mm Tooth pitch 6 - 120mm rake angle -35° to +40° clearance angle 5° - 45° Bevel cut on the back of the tooth up to 45 ° Bevel cut on the negative tooth face up to 30° Working speed for front and back grinding up to 12 teeth/min., Grinding path and grinding speed per machining surface on the tooth infinitely adjustable Dimensions loader L x W x H = 6500 x 1900 x 2000 mm Dimensions machine L x W x H = 2316 x 1860 x 2058 mm Weight approx. 3000 kg Weight machine 3000 kg weight loader 1850 Connected load approx. 4.4kW (400V / 50Hz) colour telegrey RAL 7045/7047
