GDS xGrind
Inquiries by e-mailShort Description

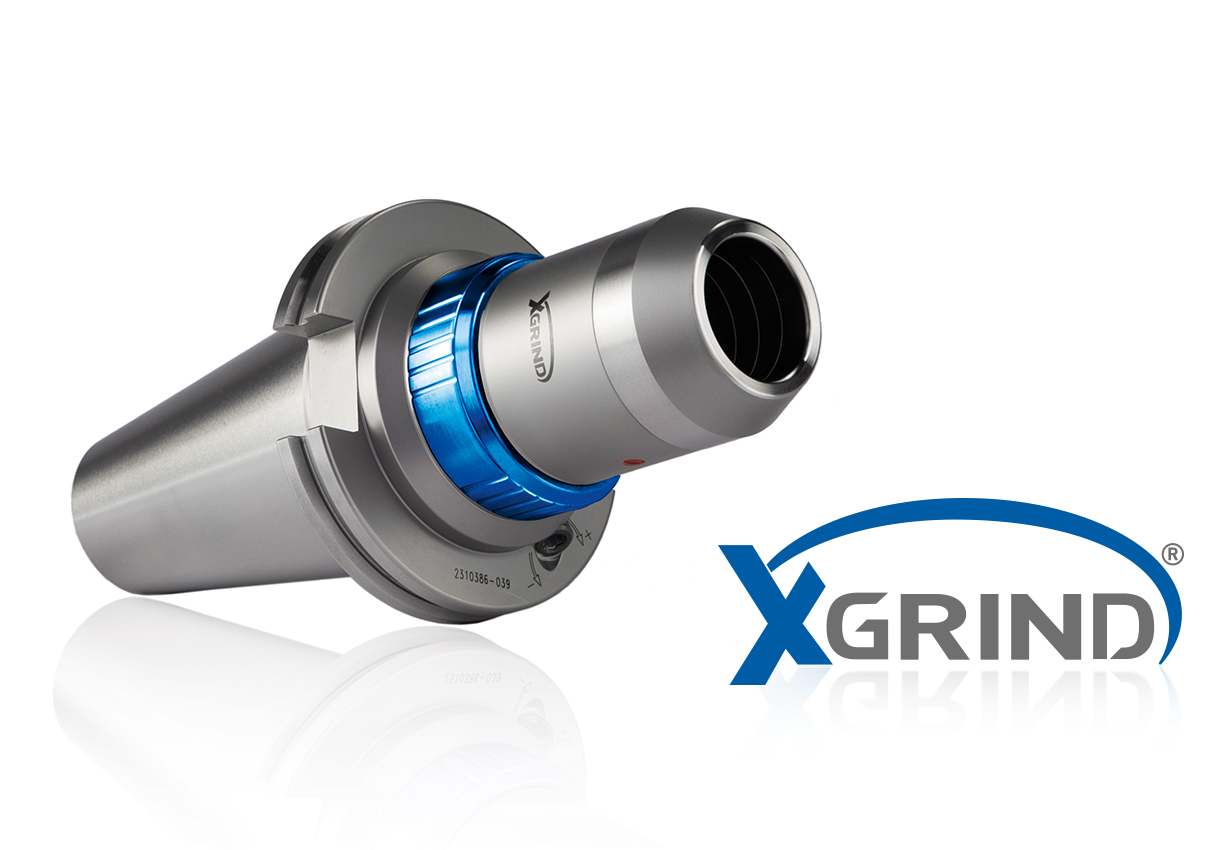

The xGrind HPS20 also provides consistent clamping force and concentricity even with a relatively short clamping length. The xGrind HPS20 delivers the conditions for a predictable and stable grinding operation.
Benefits
- High concentricity and repeatability
- Very economical due to excellent durability
- Slim profile for optimal wheel clearance
- Wide clamping range for outstanding versatility
- Easy handling saves time, 45% less than conventional clamping techniques
- Clamping key ensures safe operation
- Very low long-term operating cost due to excellent durability and affordable overhaul and repair options
The xGrind HPS20’s excellent damping characteristics attenuates vibration during the grind. Workpiece surface quality is absolutely consistent and ensures you can meet tight manufacturing tolerances. Grinding wheel wear is reduced.
Bestseller

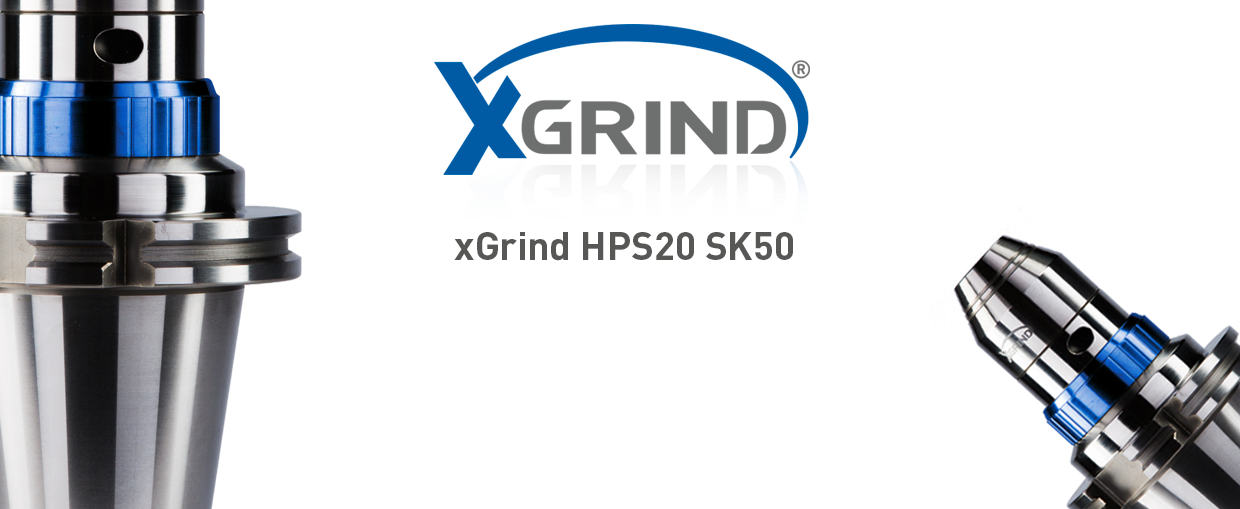

- xGrind HPS20 SK50
-
Delivery
- Clamping Key
Accessoirs
Adapter sleeves:
Form A:
350260003 HPS 20 – ø3 mm
350260004 HPS 20 – ø4 mm
350260005 HPS 20 – ø5 mm
350260006 HPS 20 – ø6 mm
350260007 HPS 20 – ø7 mm
350260008 HPS 20 – ø8 mm
350260009 HPS 20 – ø9 mm
350260010 HPS 20 – ø10 mm
350260011 HPS 20 – ø11 mm
350260012 HPS 20 – ø12 mm
350260013 HPS 20 – ø13 mm
350260014 HPS 20 – ø14 mm
350260015 HPS 20 – ø15 mm
350260016 HPS 20 – ø16 mm
350260017 HPS 20 – ø17 mm
350260018 HPS 20 – ø18 mm
350260019 HPS 20 – ø19 mm
350260020 HPS 20 – ø20 mm
350260201 HPS 20 – ø1/8’’
350260202 HPS 20 – ø3/16’’
350260203 HPS 20 – ø1/4’’
350260204 HPS 20 – ø5/16’’
350260205 HPS 20 – ø3/8’’
350260206 HPS 20 – ø7/16’’
350260207 HPS 20 – ø1/2’’
350260208 HPS 20 – ø9/16’’
350260209 HPS 20 – ø5/8’’
350260210 HPS 20 – ø11/16’’
350260211 HPS 20 – ø3/4’’
Form B:
350260130 HPS 20K – ø2,35 mm
350260103 HPS 20K – ø3 mm
350260104 HPS 20K – ø4 mm
350260105 HPS 20K – ø5 mm
350260106 HPS 20K – ø6 mm
350260301 HPS 20K – ø1/8’’
350260302 HPS 20K – ø3/16’’
350260303 HPS 20K – ø1/4’’
Form C:
350260107 HPS 20K – ø7 mm
350260108 HPS 20K – ø8 mm
350260109 HPS 20K – ø9 mm
350260110 HPS 20K – ø10 mm
350260111 HPS 20K – ø11 mm
350260112 HPS 20K – ø12 mm
350260304 HPS 20K – ø5/16’’
350260305 HPS 20K – ø3/8’’
350260306 HPS 20K – ø7/16’’
350260307 HPS 20K – ø1/2“

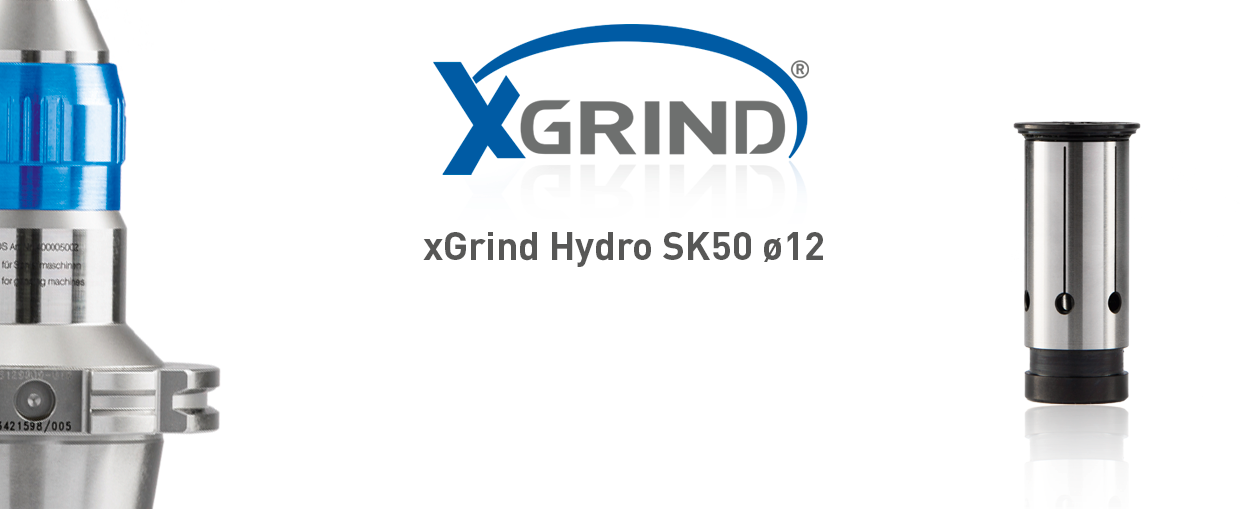

- xGrind Hydro SK50 Ø12
-
Delivery
- Clamping Key
NEW SafeGrip
Accessoirs
Intermediate Sleeves:
350110601 ø12 d3
350110602 ø12 d4
350110603 ø12 d5
350110604 ø12 d6
350110605 ø12 d8

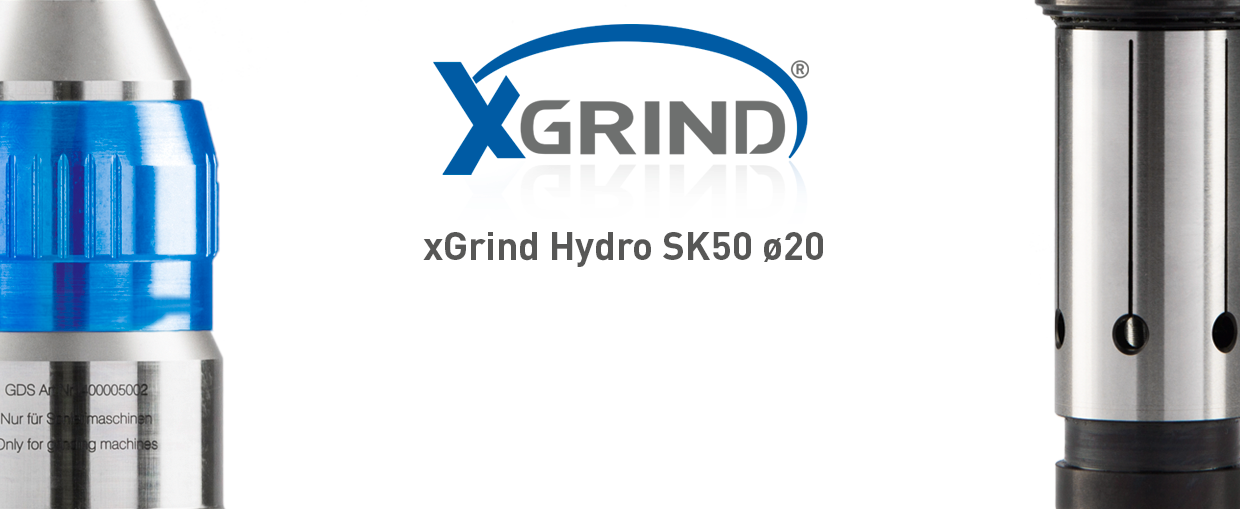

- xGrind Hydro SK50 Ø20
-
Delivery
- Clamping Key
NEW SafeGrip
Accessoirs
Intermediate Sleeves:
350110606 ø20 d3
350110607 ø20 d4
350110608 ø20 d5
350110609 ø20 d6
350110610 ø20 d7
350110611 ø20 d8
350110612 ø20 d9
350110613 ø20 d10
350110614 ø20 d11
350110615 ø20 d12
350110616 ø20 d13
350110617 ø20 d14
350110618 ø20 d15
350110619 ø20 d16

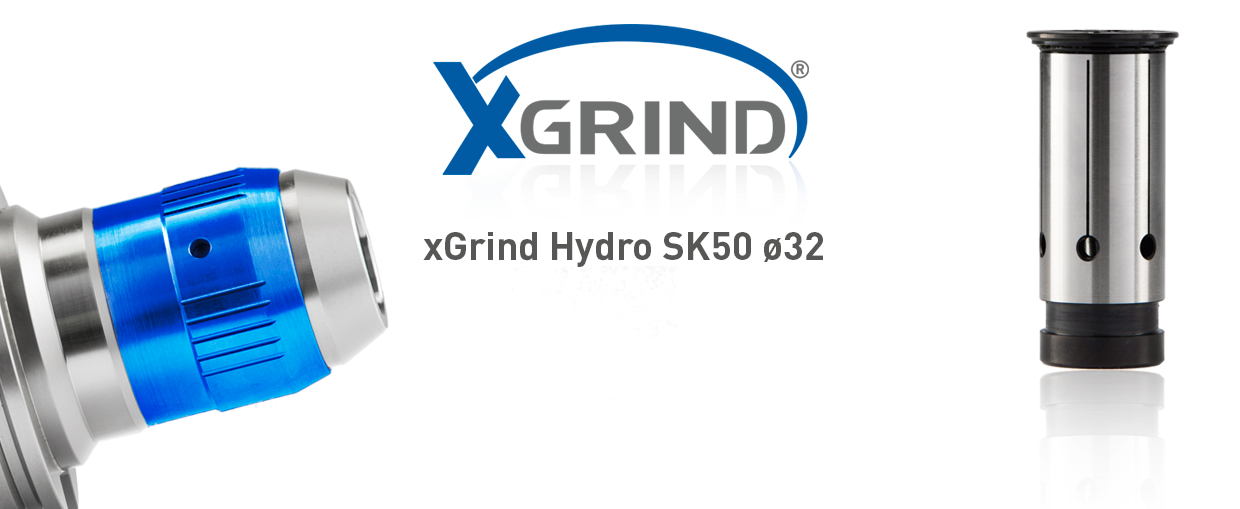

- xGrind Hydro SK50 Ø32
-
Delivery
- Clamping Key
NEW SafeGrip
Accessoirs
Intermediate Sleeves:
350110707 ø32 d6
350110708 ø32 d8
350110709 ø32 d10
350110710 ø32 d12
350110711 ø32 d14
350110712 ø32 d16
350110713 ø32 d18
350110714 ø32 d20
350110715 ø32 d25
