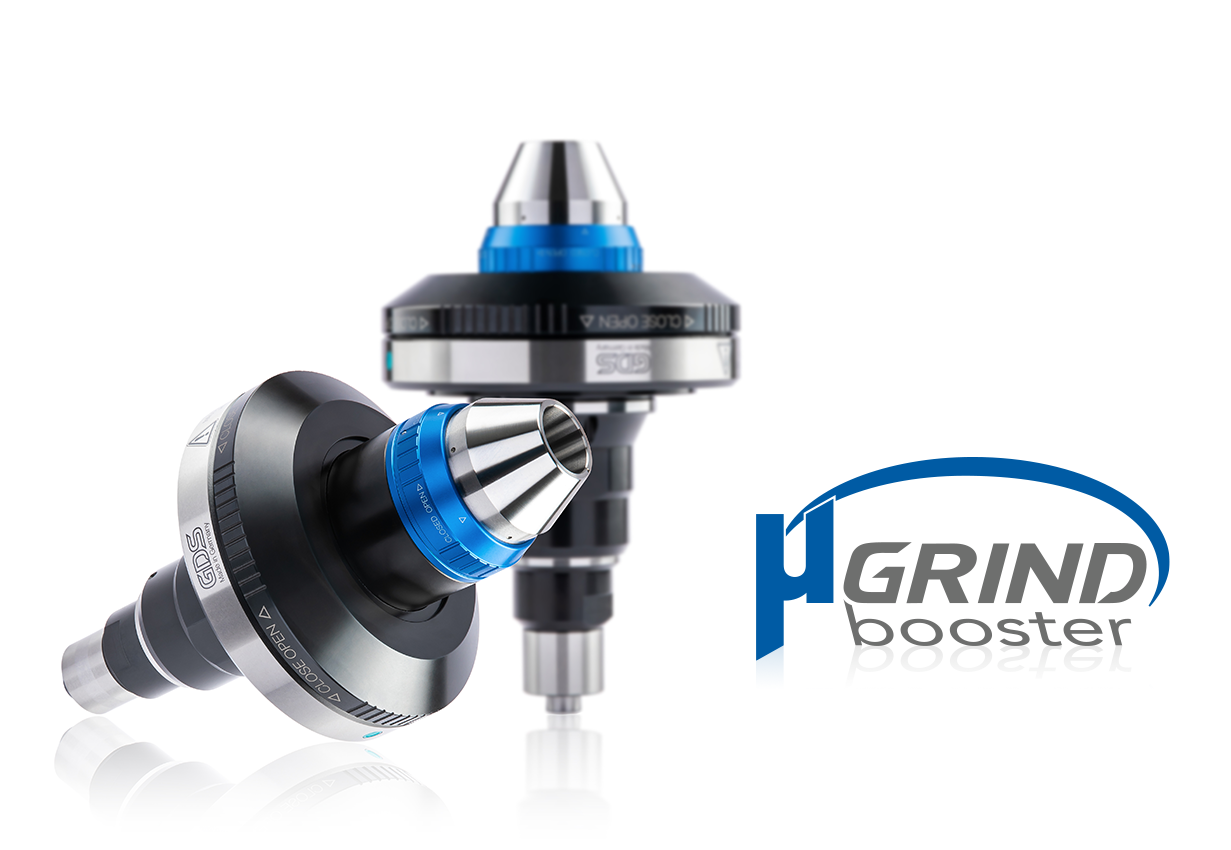

GDS µGrind booster
Inquiries by e-mailShort Description
Setup with micron-level accuracy in just a few minutes using two gauges, with absolute repeatability when changing blanks or collets (to change diameters)
Benefits
- Tapered profile for optimal wheel clearance
- Very high concentricity and repeatability, runout under 0.002 mm at 2½ x D
- Wobble alignment
- Concentricity alignment
- Change diameters in seconds simply by changing sleeves/collets; no adjustment needed
- Requires a relatively short clamping length on the blank to achieve constant holding force and concentricity
- Excellent dampening properties with very low wear; performs for tens of thousands of clamping
- Suitable for both high production and regrinding
We developed the μGrind in close cooperation with leading tool grinding professionals specifically to achieve high precision clamping in that field. Excellent damping properties for uniform material removal while optimizing feed rates. Workpiece surface finish is perfectly consistent and grinding wheel wear is significantly reduced. Your grinding process will be both highly productive and predictable.
Bestseller

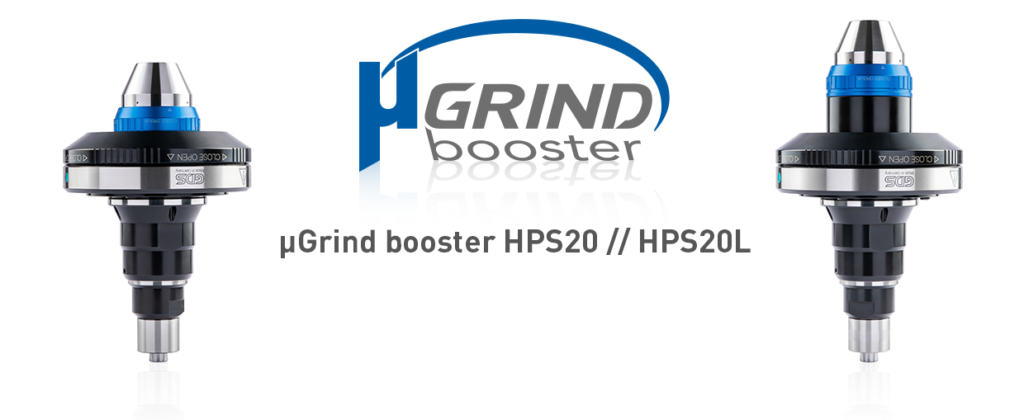

- µGrind booster HPS 20 and HPS 20 L
-
Delivery
- µGrind booster
- Case
- Push rod
- Alignment hammer
- Clamping wrench
Machine-List
- Helitronic Mini Power
- (excluding Helitronic Mini Automation)
- Helitronic Power
- Helitronic Vision
- Helitronic Essential
- Measuring machines: Helicheck
Accessoirs
Flat collets:
Form A:
350260003 HPS collet 20 – ø3 mm
350260004 HPS collet 20 – ø4 mm
350260005 HPS collet 20 – ø5 mm
350260006 HPS collet 20 – ø6 mm
350260007 HPS collet 20 – ø7 mm
350260008 HPS collet 20 – ø8 mm
350260009 HPS collet 20 – ø9 mm
350260010 HPS collet 20 – ø10 mm
350260011 HPS collet 20 – ø11 mm
350260012 HPS collet 20 – ø12 mm
350260013 HPS collet 20 – ø13 mm
350260014 HPS collet 20 – ø14 mm
350260015 HPS collet 20 – ø15 mm
350260016 HPS collet 20 – ø16 mm
350260017 HPS collet 20 – ø17 mm
350260018 HPS collet 20 – ø18 mm
350260019 HPS collet 20 – ø19 mm
350260020 HPS collet 20 – ø20 mm
350260201 HPS collet 20 – ø1/8’’
350260202 HPS collet 20 – ø3/16’’
350260203 HPS collet 20 – ø1/4’’
350260204 HPS collet 20 – ø5/16’’
350260205 HPS collet 20 – ø3/8’’
350260206 HPS collet 20 – ø7/16’’
350260207 HPS collet 20 – ø1/2’’
350260208 HPS collet 20 – ø9/16’’
350260209 HPS collet 20 – ø5/8’’
350260210 HPS collet 20 – ø11/16’’
350260211 HPS collet 20 – ø3/4’’
Tapered collets:
Form B:
350260130 HPS collet 20K – ø2,35 mm
350260103 HPS collet 20K – ø3 mm
350260104 HPS collet 20K – ø4 mm
350260105 HPS collet 20K – ø5 mm
350260106 HPS collet 20K – ø6 mm
350260301 HPS collet 20K – ø1/8’’
350260302 HPS collet 20K – ø3/16’’
350260303 HPS collet 20K – ø1/4’’
Form C:
350260107 HPS collet 20K – ø7 mm
350260108 HPS collet 20K – ø8 mm
350260109 HPS collet 20K – ø9 mm
350260110 HPS collet 20K – ø10 mm
350260111 HPS collet 20K – ø11 mm
350260112 HPS collet 20K – ø12 mm
350260304 HPS collet 20K – ø5/16’’
350260305 HPS collet 20K – ø3/8’’
350260306 HPS collet 20K – ø7/16’’
350260307 HPS collet 20K – ø1/2“

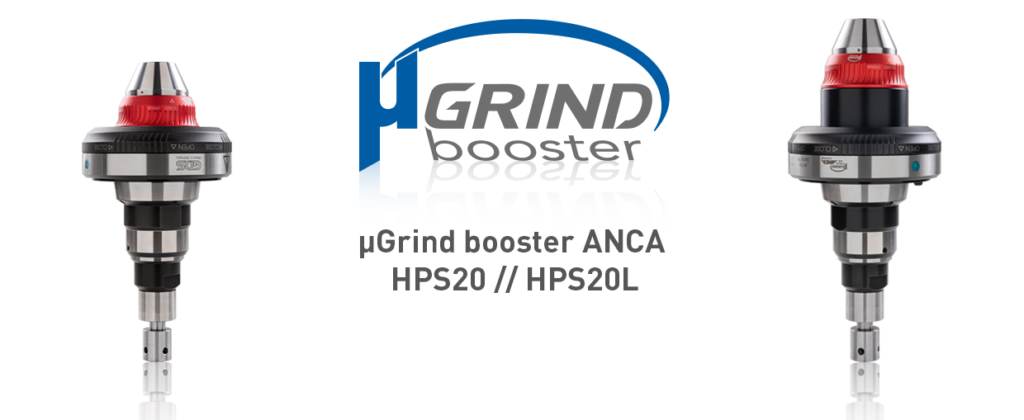

- µGrind booster ANCA HPS 20 and HPS 20 L
-
Delivery
- µGrind booster
- Case
- Push rod
- Alignment hammer
- Clamping wrench
Machine-List
- ANCA FX
- ANCA MX7
- ANCA TX
Accessoirs
Flat collets:
Form A:
350260003 HPS collet 20 – ø3 mm
350260004 HPS collet 20 – ø4 mm
350260005 HPS collet 20 – ø5 mm
350260006 HPS collet 20 – ø6 mm
350260007 HPS collet 20 – ø7 mm
350260008 HPS collet 20 – ø8 mm
350260009 HPS collet 20 – ø9 mm
350260010 HPS collet 20 – ø10 mm
350260011 HPS collet 20 – ø11 mm
350260012 HPS collet 20 – ø12 mm
350260013 HPS collet 20 – ø13 mm
350260014 HPS collet 20 – ø14 mm
350260015 HPS collet 20 – ø15 mm
350260016 HPS collet 20 – ø16 mm
350260017 HPS collet 20 – ø17 mm
350260018 HPS collet 20 – ø18 mm
350260019 HPS collet 20 – ø19 mm
350260020 HPS collet 20 – ø20 mm
350260201 HPS collet 20 – ø1/8’’
350260202 HPS collet 20 – ø3/16’’
350260203 HPS collet 20 – ø1/4’’
350260204 HPS collet 20 – ø5/16’’
350260205 HPS collet 20 – ø3/8’’
350260206 HPS collet 20 – ø7/16’’
350260207 HPS collet 20 – ø1/2’’
350260208 HPS collet 20 – ø9/16’’
350260209 HPS collet 20 – ø5/8’’
350260210 HPS collet 20 – ø11/16’’
350260211 HPS collet 20 – ø3/4’’
Tapered collets:
Form B:
350260130 HPS collet 20K – ø2,35 mm
350260103 HPS collet 20K – ø3 mm
350260104 HPS collet 20K – ø4 mm
350260105 HPS collet 20K – ø5 mm
350260106 HPS collet 20K – ø6 mm
350260301 HPS collet 20K – ø1/8’’
350260302 HPS collet 20K – ø3/16’’
350260303 HPS collet 20K – ø1/4’’
Form C:
350260107 HPS collet 20K – ø7 mm
350260108 HPS collet 20K – ø8 mm
350260109 HPS collet 20K – ø9 mm
350260110 HPS collet 20K – ø10 mm
350260111 HPS collet 20K – ø11 mm
350260112 HPS collet 20K – ø12 mm
350260304 HPS collet 20K – ø5/16’’
350260305 HPS collet 20K – ø3/8’’
350260306 HPS collet 20K – ø7/16’’
350260307 HPS collet 20K – ø1/2“

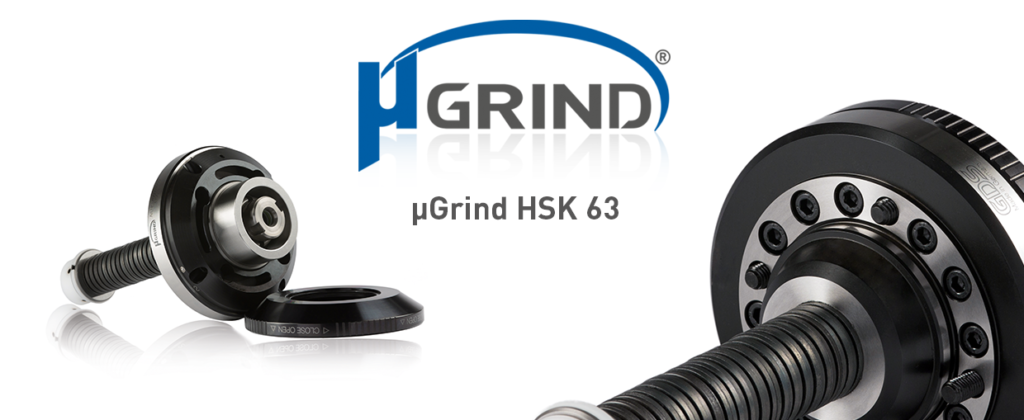

- µGrind HSK63
-
Delivery
- µGrind HSK63
- Case
- Push rod
- Mallet
- Tightening Wrench
Machine-List
- Helitronic Mini Power
- (excluding Helitronic Mini Automation)
- Helitronic Power
- Helitronic Vision
- Helitronic Essential
- Measuring machines: Helicheck
Accessoirs
350090050 Test mandrel HSK63 x ø50 x 200
