2022 Farman FC 250 W
Inquiries by e-mail- DESCRIPTION
-

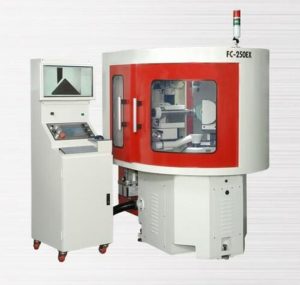

Machine designed for profiling and dressing flats, side, angular, radius and special shapes on diamond and CBN wheels. Especially suitable for single or multiple wheel packs.
Accessories:
- Motor Upgrade (stronger motors for the wheel being dressed and the dressing wheel),
- Wheel motor strengthened to 4 kW,
- Dressing wheel motor strengthened to 2,2 kW,
- 2 Machine lights 12 V,
- Optical linear scale with digital display counter (0,001 mm) X, Z Axes,
- 2/3” TV Camera with 15” LCD monitor (microscope with zoom 15‐120X included),
- High performance swivelling angle reader (0,05°),
- Diamond / CBN wheel spindle speed stepless adjustable 100 - 1000 rpm,
- Turning speed of dressing wheel stepless adjustable 200 - 2000 rpm,
- Stepless oscillation speed,
- Automatic central lubrication,
- SIC Wheel dresser manual,
- Protection cover.
- SPECIFICATIONS
-
Manufacturer Farman Model FC 250 W Year 2022 Condition New Stock Number FC250W Specifications Wheel spindle taper: HSK50E (alternatives possible), max diameter diamond wheel: 250 mm, Min diameter diamond wheel: 50 mm, max wheel width: 70 mm, wheel hole diameter: 20, wheel speed: 100 – 1000 RPM (infinitely variable), Wheel motor power: 4 KW wheel cross stroke 200 mm, wheel longitudinal stroke 140 mm, wheel radius: 0 – R30 mm, dressing wheel (SiC) 180x25x32 mm, dressing wheel speed 200 – 2000 RPM, dressing wheel oscillating speed 3400 mm/1 min (infinitely variable), dressing wheel oscillating stroke 0‐70 mm, dressing wheel motor power 2,2 KW, dressing wheel swivelling speed 360° / 1 min (infinitely variable), weight approx. 900 kg, dimensions w x d x h 1165 x 1150 x 1950 cm, connected load (380V – 50 Hz), colour RAL 9003. - DOCUMENTS
